€ 13,500.00

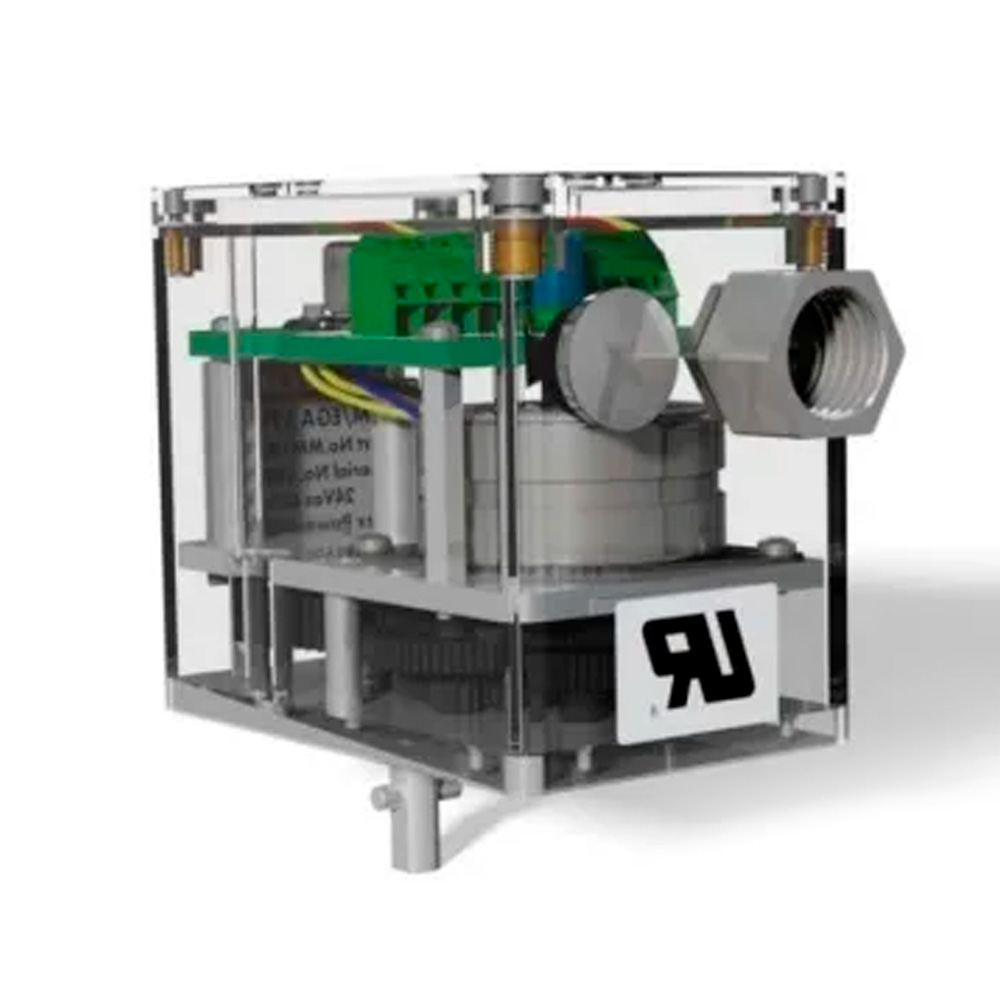

The Autoflame MM10005C is a compact high-precision servo motor/actuator designed for burner control and HVAC applications. With a nominal output torque of 4 Nm (3 ft-lbs), it is suitable for small dampers, valves or linkages within combustion and air/gas flow systems. It features lightweight construction, compact dimensions and is optimized for 24 V AC 50 Hz operation (other voltages available). This small servomotor supports accurate positioning, reliable service and easy integration into control systems.
In stock
Overview
The Autoflame MM10005C is a compact high-precision servo motor/actuator designed for burner control and HVAC applications. With a nominal output torque of 4 Nm (3 ft-lbs), it is suitable for small dampers, valves or linkages within combustion and air/gas flow systems. It features lightweight construction, compact dimensions and is optimized for 24 V AC 50 Hz operation (other voltages available). This small servomotor supports accurate positioning, reliable service and easy integration into control systems.
Key Features
Nominal torque: 4 Nm (3 ft-lbs)
Supply voltage: 24 V AC, 50 Hz (specific to this variant)
Compact, lightweight design for small valve or damper actuation
Precise positioning for accurate control of air/gas flows
Suitable for burner applications, HVAC dampers and valve linkages
Durable housing, designed for industrial environments
Main Benefits
Enables use of a correctly sized actuator for smaller valves or dampers, avoiding oversized components
Reduces space requirements due to compact form factor
Simplifies installation in retrofit or space-constrained systems
Promotes efficient and stable control of the burner or HVAC system
Backed by a recognized brand in combustion controls
Technical Highlights
Output torque: 4 Nm (3 ft-lbs)
Supply voltage: 24 V AC, 50 Hz
Compact housing and lightweight build
Designed for accurate rotary positioning of small valves and dampers
Installation & Safety Notes
Installation and wiring must be performed by qualified personnel in accordance with local electrical and combustion safety standards.
Verify correct coupling of actuator shaft to damper or valve linkage and alignment.
Ensure the control system (burner controller or HVAC controller) matches the voltage and signal requirements of the servo motor.
Route wiring to avoid mechanical strain, vibration or exposure to harsh environmental conditions.
Periodically inspect the actuator for wear, secure mounting and correct operation.
Applications
Small burner fuel/air valves in commercial or industrial heating systems
HVAC air dampers or gas dampers requiring 4 Nm torque
Retrofitting older systems with compact servo actuators
Precise valve/damper positioning in combustion or ventilation systems
| Weight | 1 kg |
|---|---|
| Dimensions | 11 × 10 × 7 cm |
